CWF-工業類

電源模塊溫度傳感器

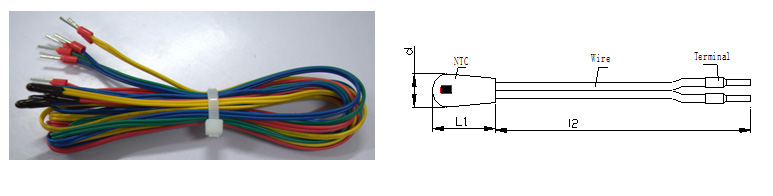

Power module temperature sensor

產品性能簡述
Description of Product Performance

Code(代碼)	d	D		L2
Dimension (尺寸)	客戶自定義 Customized			≥50mm
產品性能	1、線材規格：依客戶需求	Product Performance	1.Wire specification：By Customer's Requirements.
	2、絕緣：DC500V Min 100MΩ,3Sec		2.Insulation：DC500V Min 100MΩ,3Sec
	3、使用溫度范圍： -30℃～105℃		3.Operating temperature range：-30℃～105℃
產品特點	1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確.	Features	1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature
	2、產品特殊防水、防潮處理，潮濕環境工作穩定		2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment.
	3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作		3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work
產品用途	適用于電源溫控模塊	Product Usage	apply to power supply temperature control module

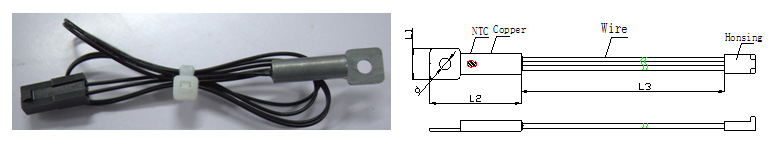

Mosquito killer temperature sensor

產品性能簡述
Description of Product Performance

Code(代碼)	d	L1		L2	L3
Dimension (尺寸)	3.6mm	9.6mm		29.0mm	≥50mm
產品性能	1、線材規格：依客戶需求	Product Performance	1.Wire specification：By Customer's Requirements.
	2、耐壓：AC1000V～AC2000V,3Sec		2.Withstand voltage ：AC1000V～AC2000V,3Sec
	3、絕緣：DC500V Min 100MΩ,3Sec		3.Insulation：DC500V Min 100MΩ,3Sec
	4、使用溫度范圍： -30℃～105℃		4.Operating temperature range：-30℃～105℃
	-30℃～125℃		-30℃～125℃
	-30℃～150℃		-30℃～150℃
產品特點	1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確.	Features	1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature
	2、產品特殊防水、防潮處理，潮濕環境工作穩定		2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment.
	3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作		3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work
產品用途	適用于滅蚊機溫控模塊	Product Usage	apply to mosquito killer temperature control module

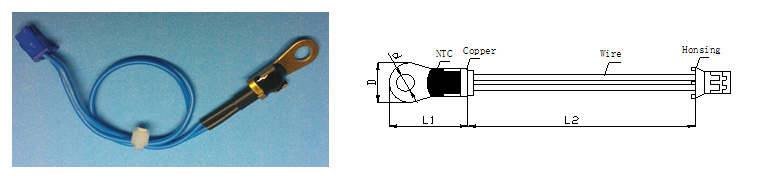

Fire equipment temperature sensor

產品性能簡述
Description of Product Performance

Code(代碼)	d	L1		L2
Dimension (尺寸)	客戶自定義 Customized			≥50mm
產品性能	1、線材規格：依客戶需求	Product Performance	1.Wire specification：By Customer's Requirements.
	2、耐壓：AC1000V～AC2000V,3Sec		2.Withstand voltage ：AC1000V～AC2000V,3Sec
	3、絕緣：DC500V Min 100MΩ,3Sec		3.Insulation：DC500V Min 100MΩ,3Sec
	4、使用溫度范圍： -30℃～105℃		4.Operating temperature range：-30℃～105℃
	-30℃～125℃		-30℃～125℃
	-30℃～150℃		-30℃～150℃
產品特點	1、采用高精度、高穩定性元件封裝，測量溫差小，溫度更準確.	Features	1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature
	2、產品特殊防水、防潮處理，潮濕環境工作穩定		2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment.
	3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作		3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work
產品用途	適用于消防器材溫控模塊	Product Usage	apply to fire equipment temperature control module
